The rod-linkage lock (top-and-bottom linkage lock) for electrical control cabinets is a multi-point linkage security lock designed for various types of electrical enclosures, including high/low-voltage cabinets, variable frequency drive (VFD) cabinets, PLC industrial control cabinets, and outdoor electrical cabinets. Unlike traditional single-point locks, this system utilizes a top-and-bottom linkage mechanism to ensure the cabinet door closes and seals tightly at multiple points simultaneously. It effectively resolves issues such as door loosening, poor sealing, and dust leakage caused by long-term operational vibrations, while preventing accidental contact with live components. As a core hardware accessory for complete electrical equipment sets, it ensures comprehensive operational safety and robust enclosure protection.

The lock body is manufactured using high-strength zinc alloy via integrated die-casting, resulting in a compact, dense structure that resists compression, deformation, and impact. Its stable mechanical properties make it suitable for the rigorous demands of continuous, long-term equipment operation. The surface undergoes multiple anti-corrosion and anti-rust treatments—including electrophoresis, electrostatic powder coating, and galvanizing—providing excellent resistance to temperature extremes, aging, and acid-alkali corrosion. It performs reliably in complex environments, such as enclosed, humid equipment rooms, outdoor areas exposed to sun and rain, and dusty conditions. The mechanism operates smoothly without sticking, offering high wear resistance and a long service life, while remaining free from common failures like jamming, loosening, or malfunction.

Utilizing a precision mechanical linkage principle, the lock allows the internal top and bottom rods to extend and retract synchronously when the external handle is turned. This ensures the cabinet door presses evenly against the frame across its entire surface, resulting in balanced locking force and a tight seal. It significantly enhances the cabinet's dust-proof, moisture-proof, and sealing capabilities, effectively blocking the entry of dust, moisture, and debris to prevent issues such as dust accumulation, dampness, short circuits, leakage, and component damage. Additionally, it completely eliminates door displacement and rattling caused by operational vibrations and offers superior resistance against prying, theft, and accidental opening, thereby reliably boosting the operational safety and security of the entire electrical control system. The product features a standardized cutout design compatible with the vast majority of standard electrical cabinets on the market. It offers simple installation and removal without the need for additional drilling or modification, making it suitable for automated mass-production lines and effectively boosting assembly efficiency. It supports various lock core specifications—including triangular, slotted, and dedicated key locks, as well as master-key (common) or unique-key configurations—to meet diverse operational needs such as centralized facility management, tiered security, and restricted access control. With moderate operating resistance and effortless handling, the product balances robust security with ease of maintenance.

It is widely applicable to a full range of electrical sheet-metal cabinets, including electrical control cabinets, high/low-voltage power distribution cabinets, variable frequency drive (VFD) cabinets, PLC industrial control cabinets, outdoor waterproof electrical boxes, electronic control equipment enclosures, and energy storage control cabinets. Customization options are available for connecting rod length, mounting dimensions, and surface finishes, allowing for precise matching based on cabinet wall thickness, door structure, and IP protection requirements. Highly versatile and adaptable, it is a preferred locking solution for electrical system integration, industrial control equipment, and the new energy control sector.

I. Core Product Specifications

- Body Material: High-strength zinc alloy (integrated die-casting); dense structure, impact-resistant, and deformation-resistant.

- Surface Finish: Electrophoresis, electrostatic powder coating, or galvanizing; multi-layer anti-corrosion and rust protection.

- Operating Principle: Multi-point locking via top and bottom connecting rods; ensures uniform compression and sealing across the entire cabinet door.

- Lock Core Specifications: Triangular, slotted, and dedicated key locks; supports customization for common (master) or unique keying.

- Compatible Cabinets: Electrical control cabinets, high/low-voltage distribution cabinets, VFD cabinets, PLC industrial control cabinets, outdoor energy storage control cabinets.

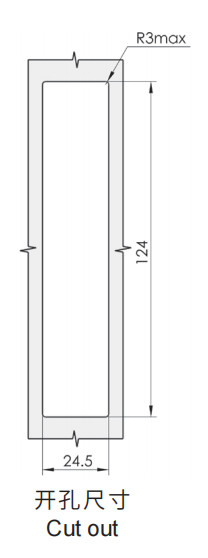

- Compatibility: Standardized cutout design; no secondary modification required; suitable for automated mass assembly.

- Customization Services: Non-standard customization available for connecting rod length, mounting dimensions, and surface finishes.

II. Key Product Highlights

- Multi-point locking for superior sealing: Unlike traditional single-point locks, this system simultaneously compresses the door at multiple points (top and bottom). This eliminates issues such as door loosening, dust ingress, or water leakage caused by equipment vibration, significantly enhancing the cabinet's IP protection rating. - **Corrosion-resistant and weather-proof for harsh conditions:** Features multi-layer surface protection; resistant to temperature extremes, aging, and acid/alkali corrosion; suitable for long-term use in complex industrial environments such as server rooms, outdoor locations, and areas with high dust or humidity.

- Safety-focused design to eliminate hazards:** Includes anti-tamper, anti-theft, and accidental-opening prevention features; effectively isolates live internal components to prevent accidental contact by personnel and equipment short-circuits caused by moisture, thereby enhancing the operational safety of electrical equipment.

- Universal installation and broad compatibility:** Designed with industry-standard cutout dimensions for easy installation and removal, making it suitable for mass production and assembly; various lock core specifications meet diverse needs, such as tiered access management and unified maintenance operations.

- Durable, stable, and reliable:** Utilizes a precision mechanical linkage structure for smooth, snag-free operation; highly wear-resistant and robust, ensuring resistance to jamming or failure over long-term use and extending the product's service life.

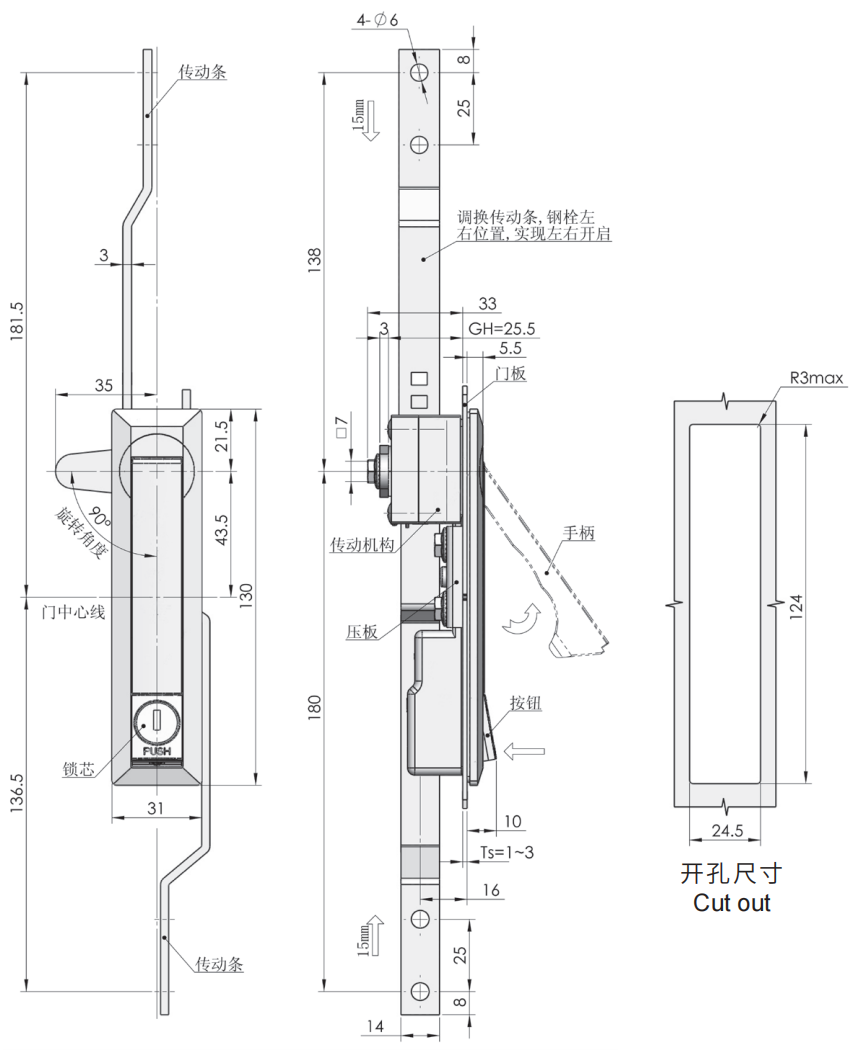

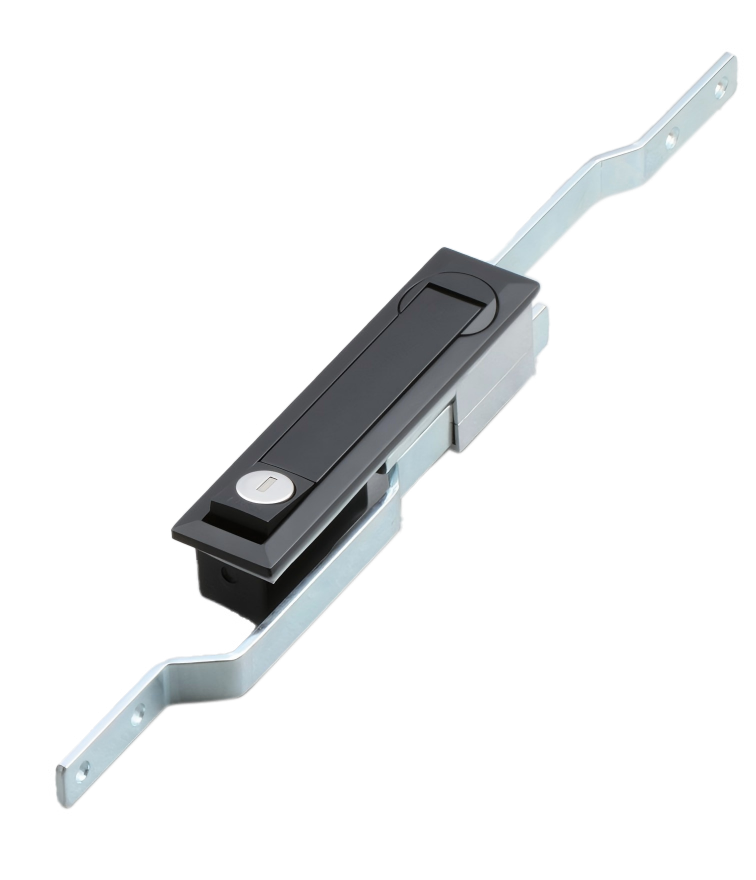

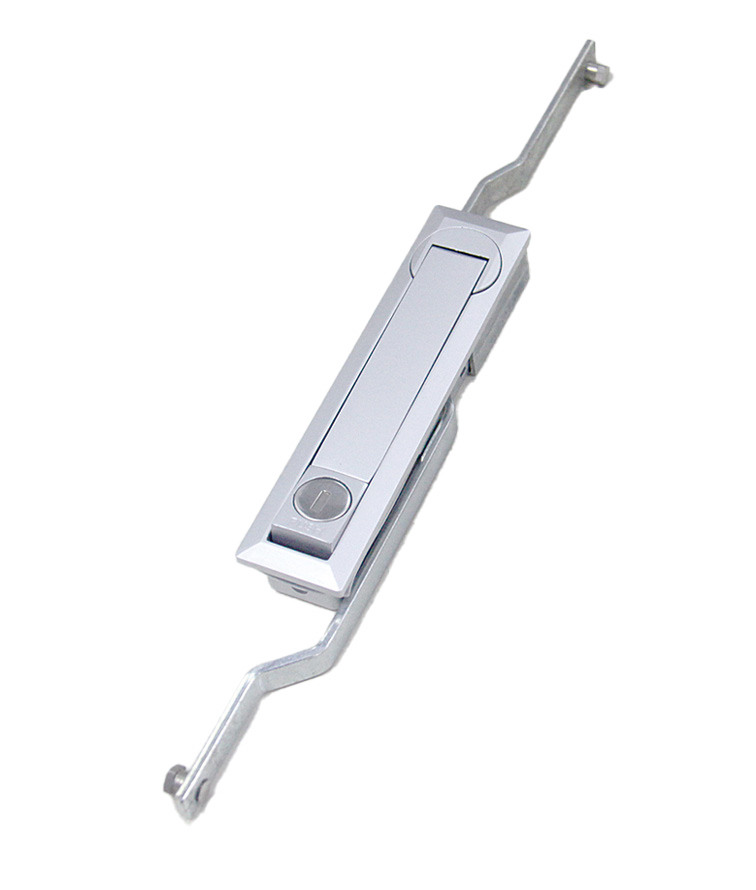

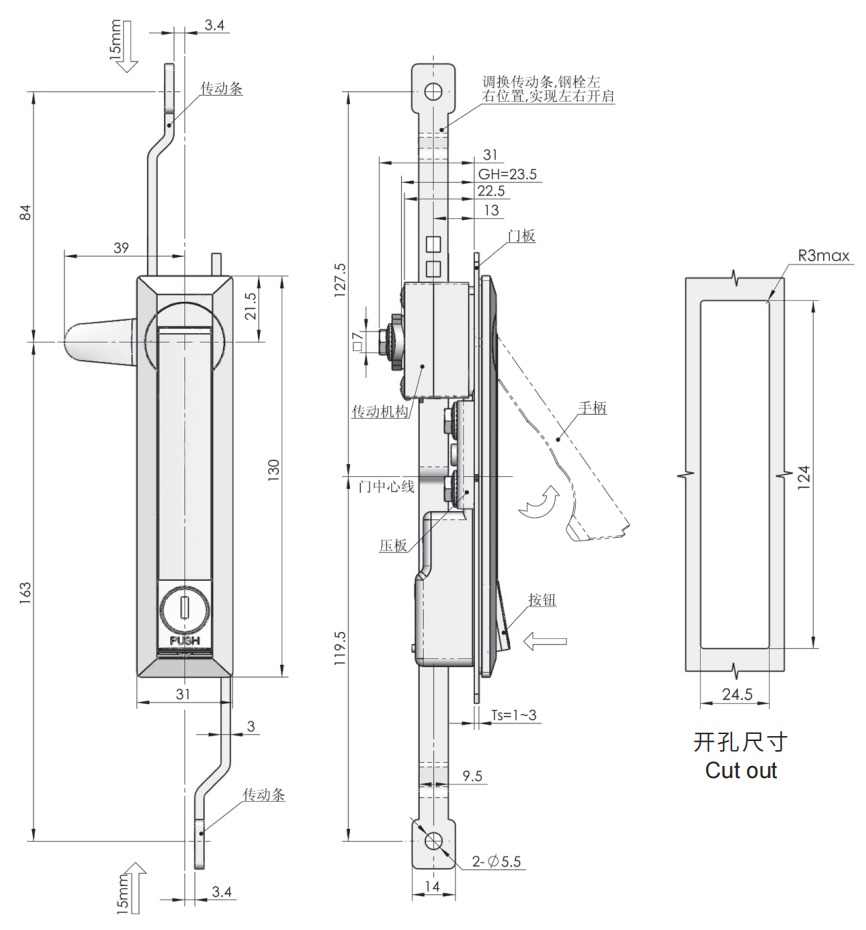

Product Descriptions: Cabinet linkage lock, top-and-bottom rod lock, control cabinet multi-point lock, pop-out linkage lock, cabinet linkage transmission lock, equipment cabinet door linkage lock. Model No.: ICL731-1, ICL731-2, ICL731-3, ICL731-4, ICL731-5;

Base Materials: Housing, handle, button, transmission housing, and lock core: Zinc alloy;

Connecting rod and latch bolt: Carbon steel;

Performance Parameters: Handle tensile load capacity: ≤350 N; Handle torque load capacity: ≤25 N·m;

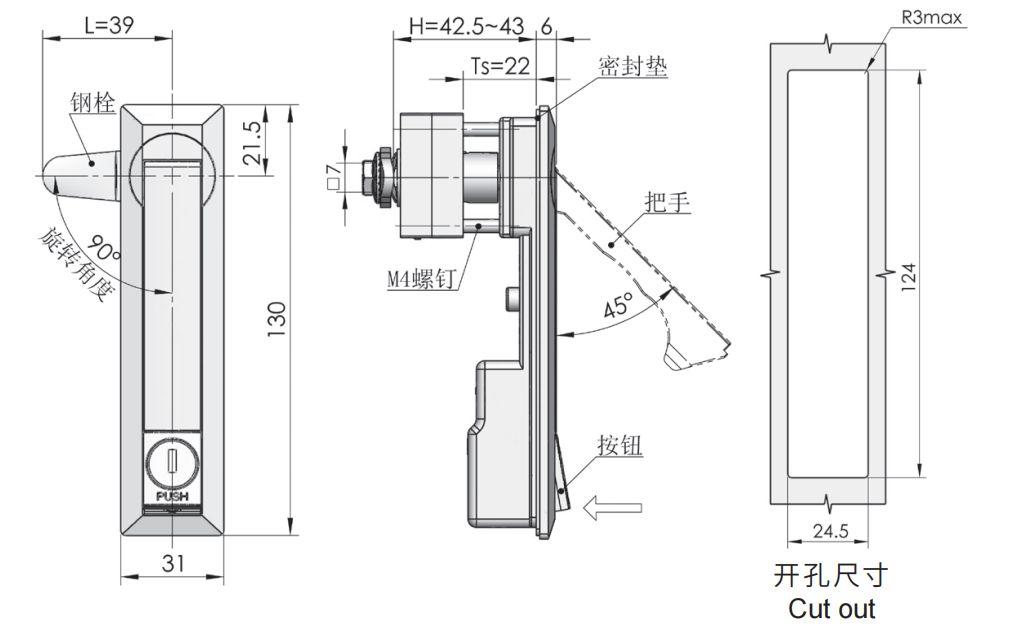

Structural Features: 90° rotation for opening/locking; supports left or right rotation; IP40 rating;

Surface Treatment:

1. Zinc alloy lock body: Black powder coating, black electrophoresis, chrome plating, or matte black spray coating (customizable colors);

2. Connecting rods: Hot-dip galvanizing or electro-galvanizing (rust and corrosion protection);

3. Lock core: Nickel plating (wear-resistant and rust-proof);

Manufacturing Process: Die-casting, CNC precision finishing, stamping, bending, drilling & tapping, assembly, pin tumbler assembly, torque testing, and cycle life testing;

Unit Price: Priced based on quantity;

Product:

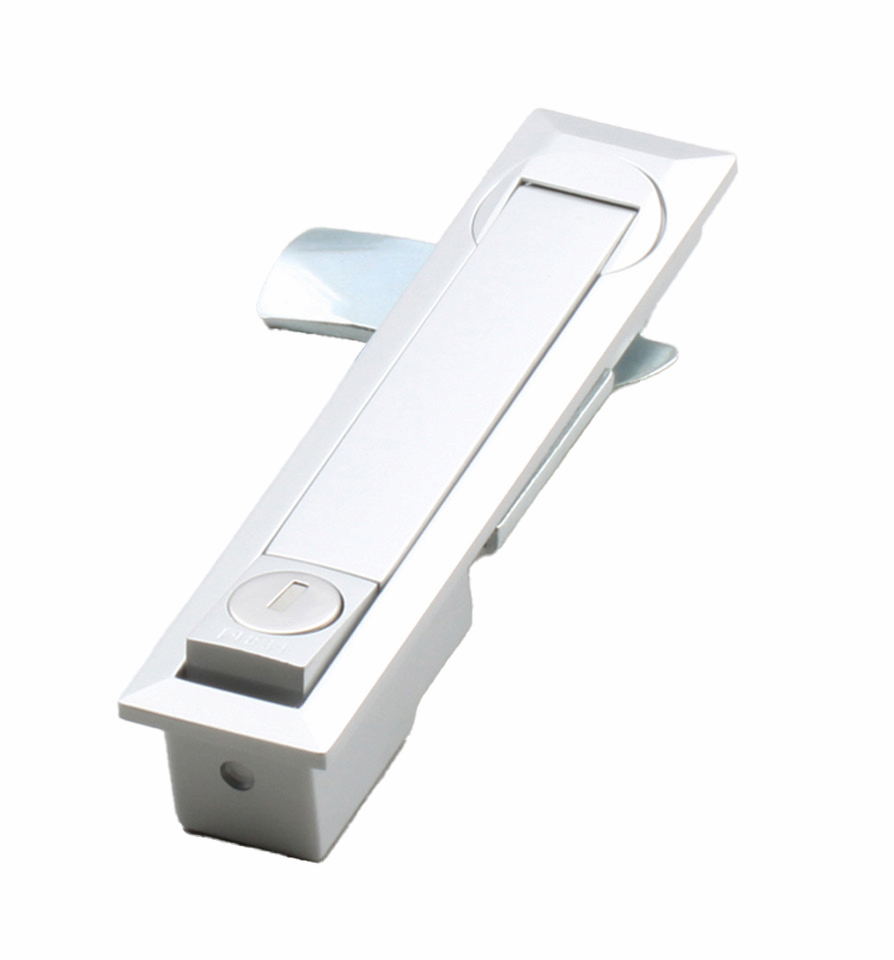

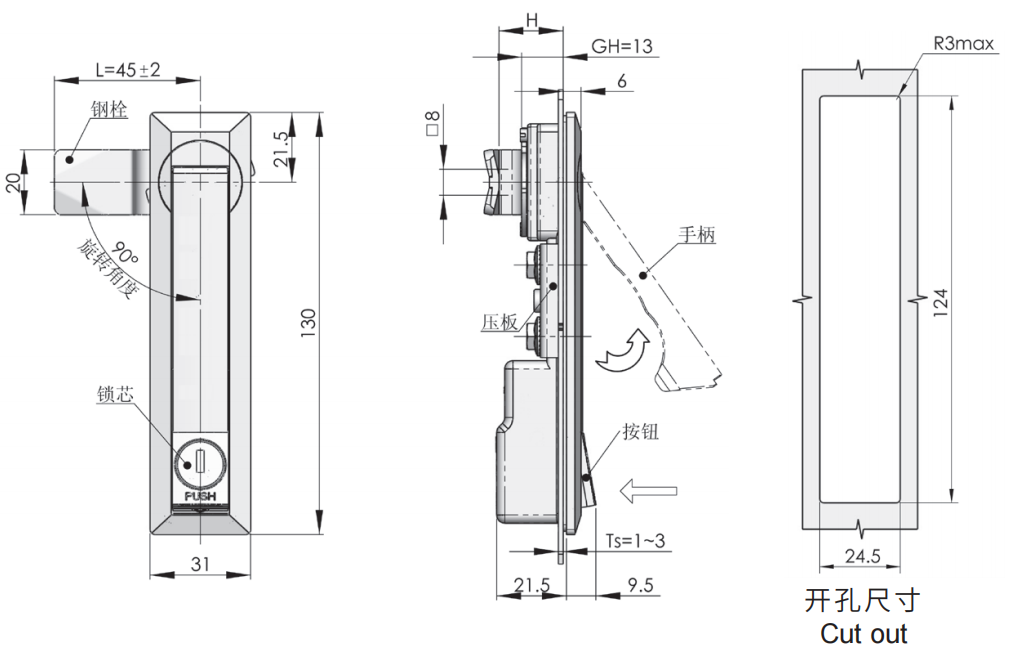

ICL731-1:

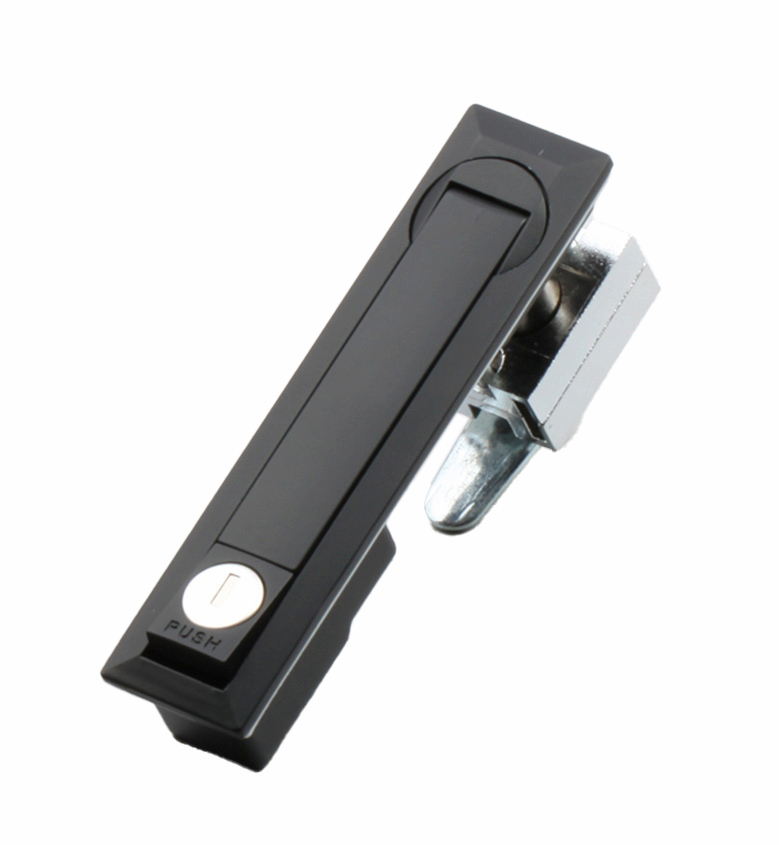

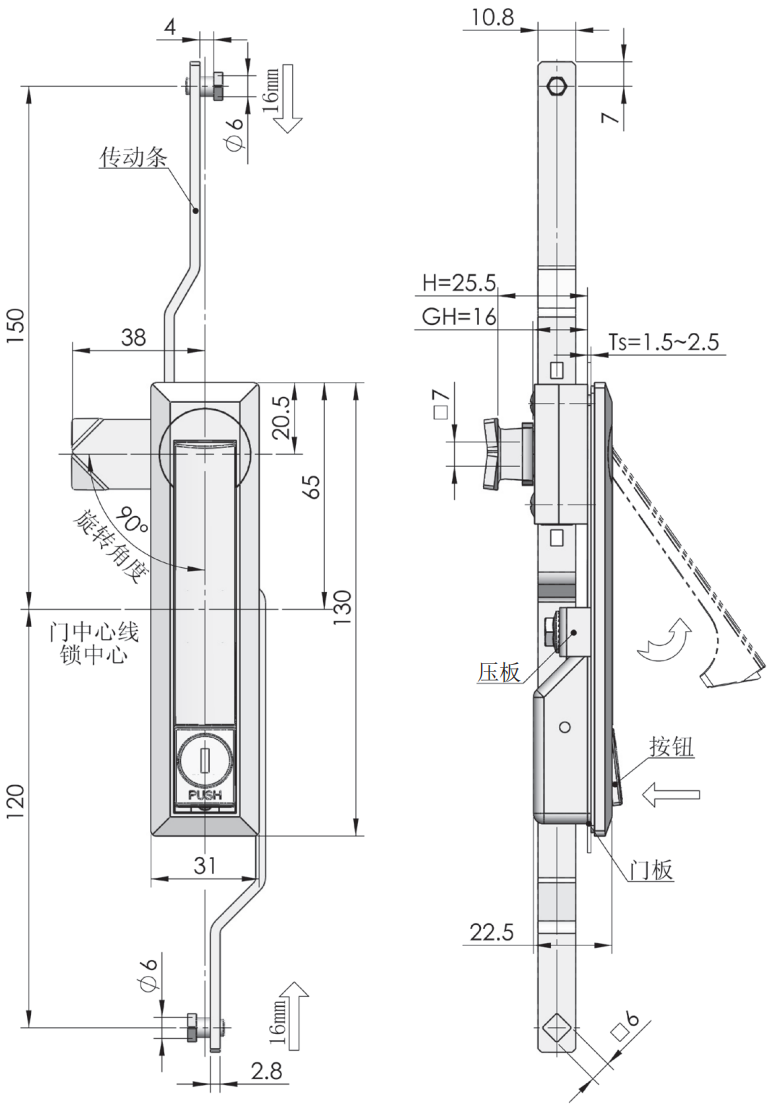

ICL731-2：

CL731-3

ICL731-4

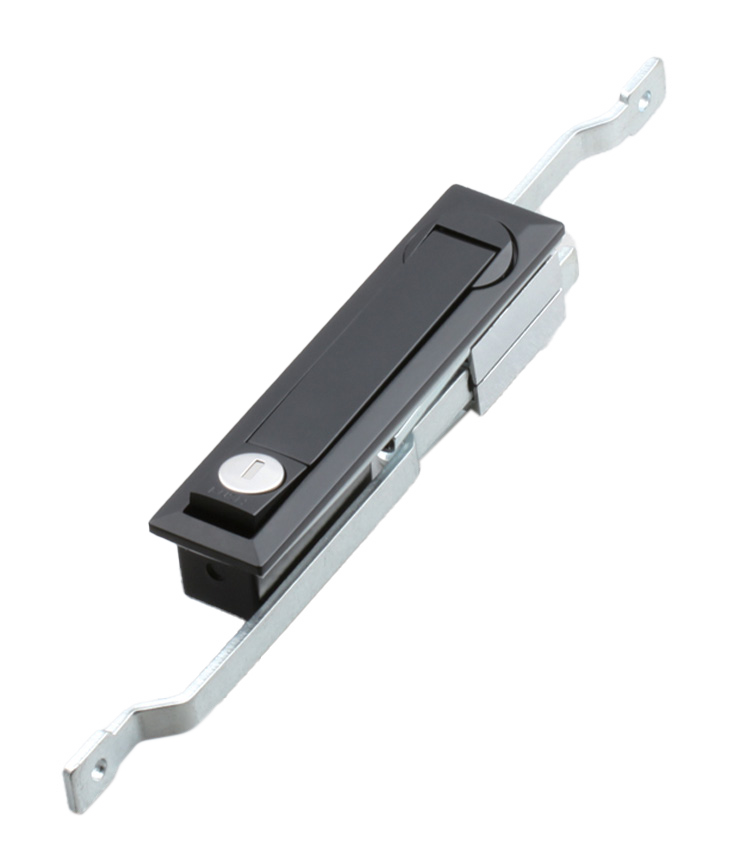

ICL731-5

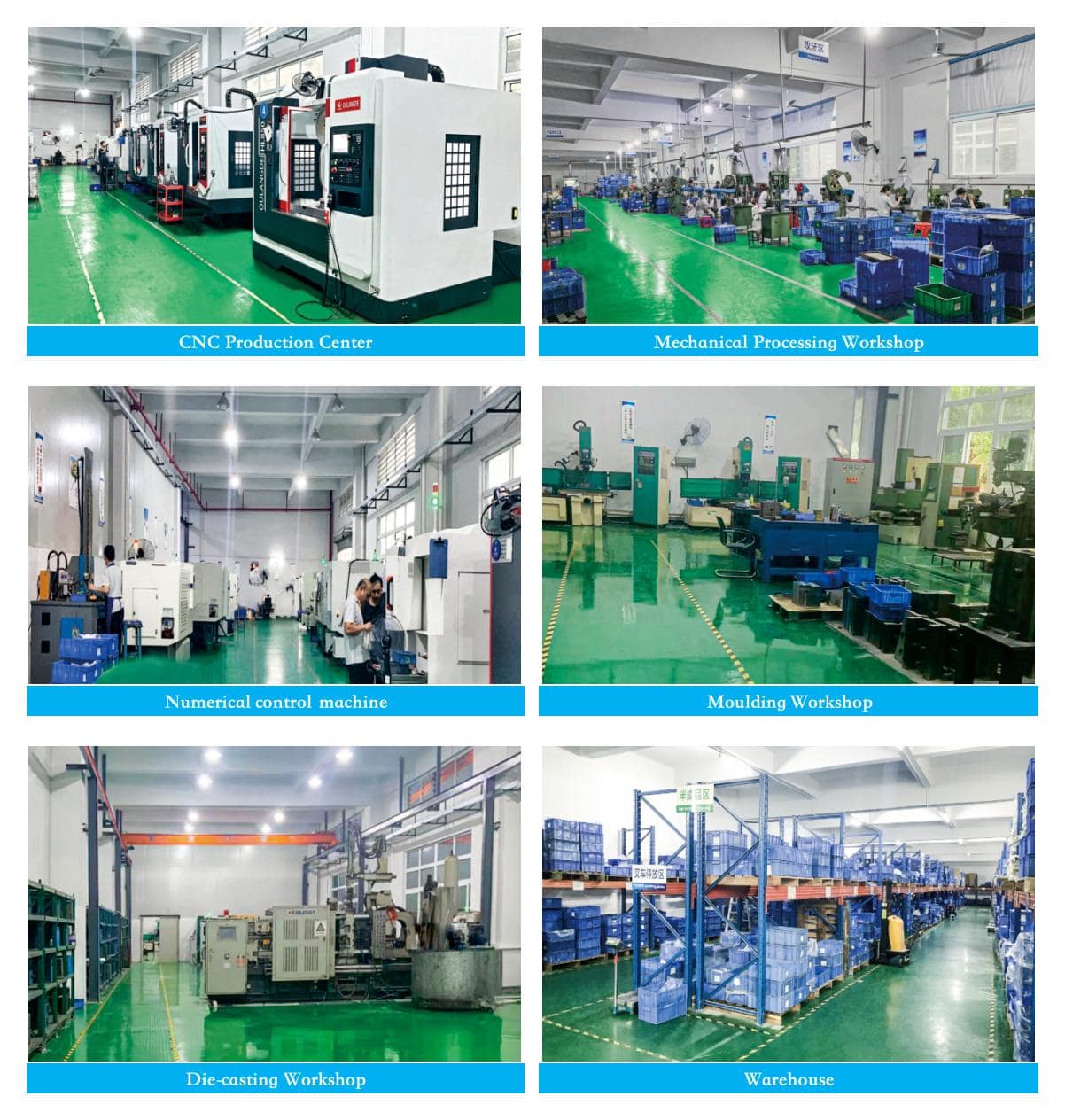

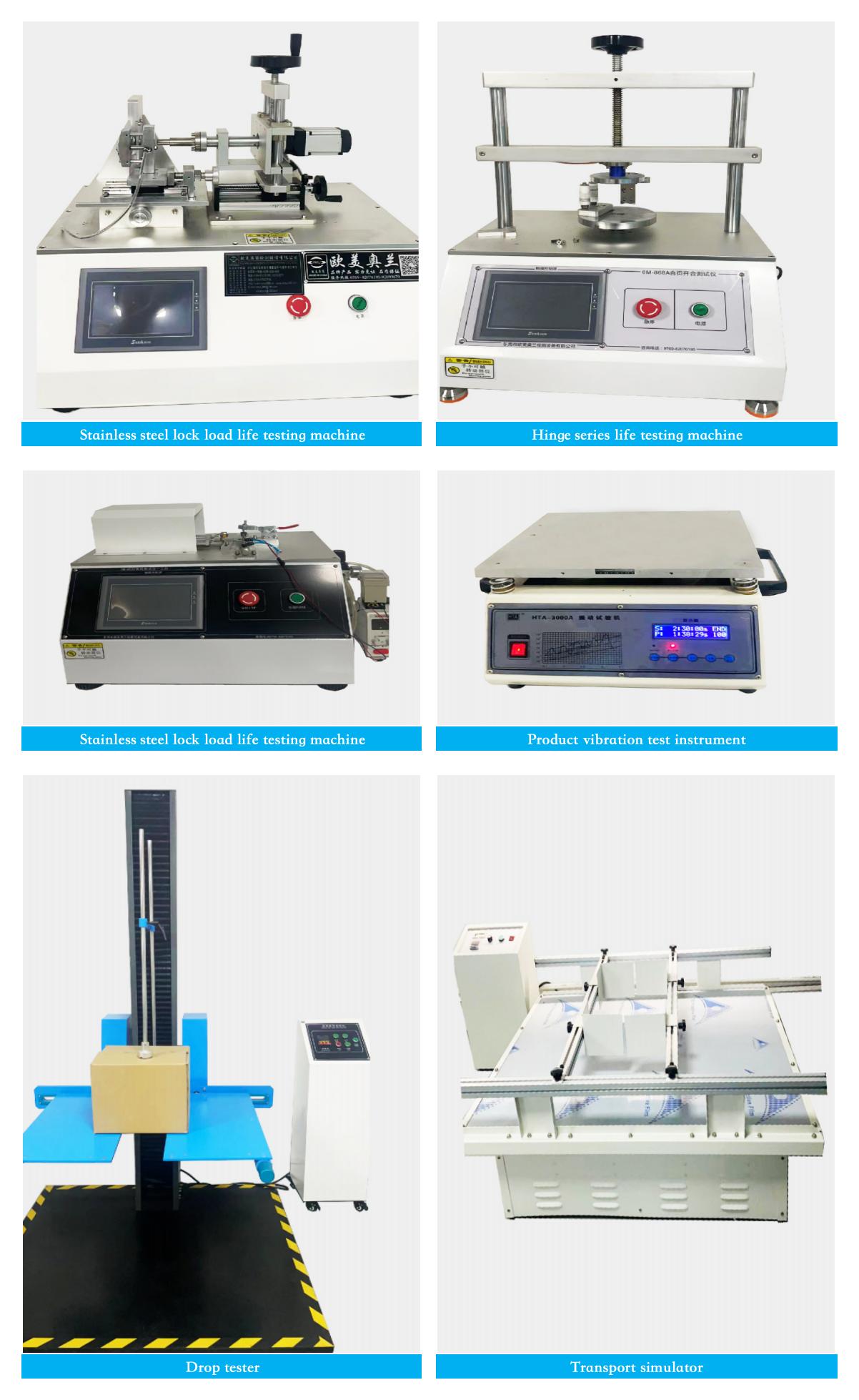

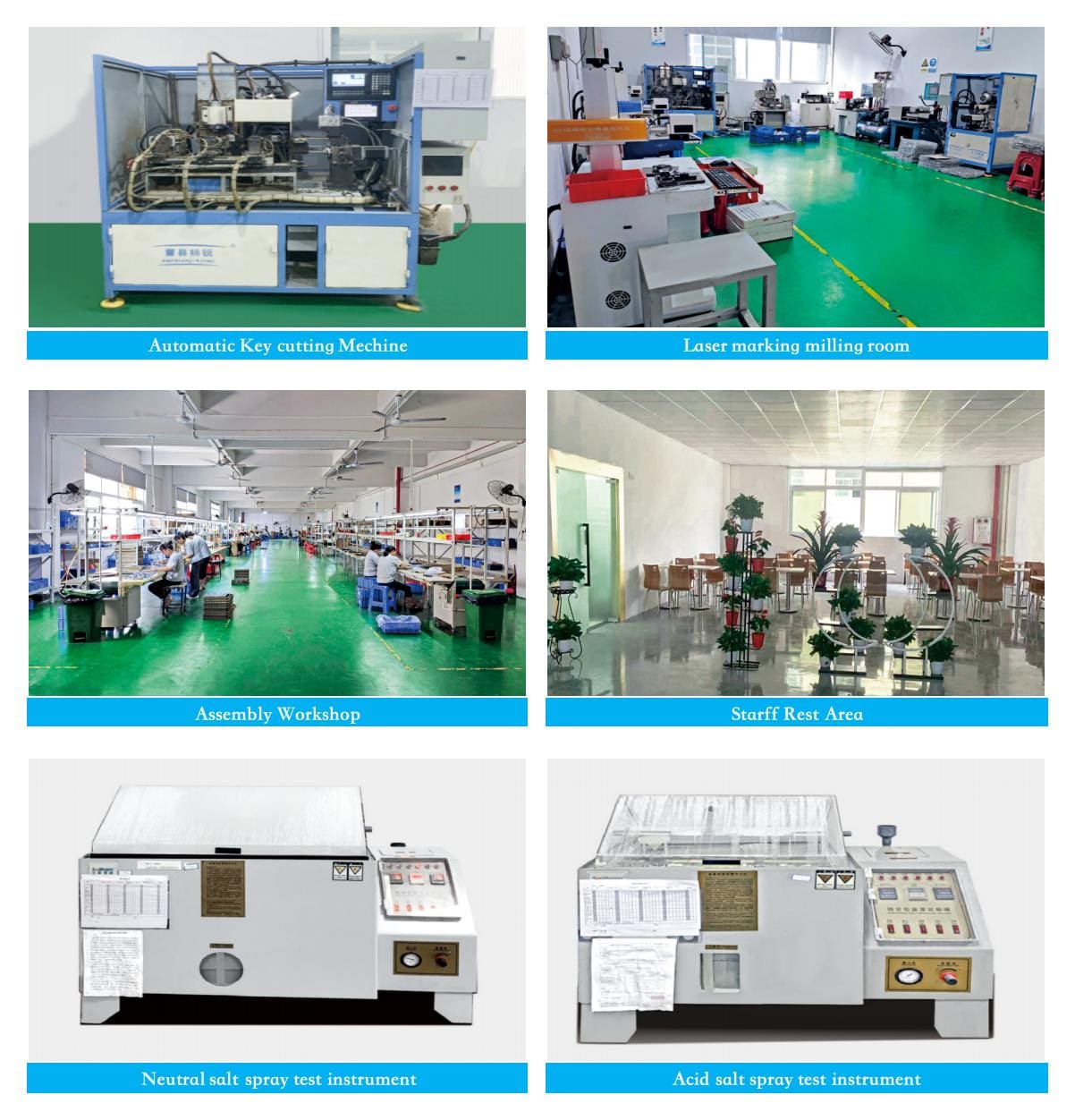

Workshop:

Packaging:

1. Single item: The product is packaged in PE bags and paper boxes to prevent surface scratches. Each set comes with a key and an installation screw accessory bag.

2. Small batch: Packed in export corrugated cartons;

3. Large quantities: Cartons are stacked on ISPM-15 heat-treated solid wood pallets, with corner protection and overall fastening with stretch film

Transportation:

Sea transportation, air transportation, international express delivery (DHL, FedEx, UPS, TNT), railway transportation (mainly China-Europe Railway Express), road and land transportation (short-distance foreign trade with neighboring countries)
