Industrial cabinet rod-linkage locks—also known as top-and-bottom rod locks or multi-point linkage locks—are precision hardware components designed for industrial electrical control cabinets, energy storage cabinets, and telecommunications equipment enclosures. Utilizing a linkage mechanism that drives rods up and down, they achieve synchronized multi-point locking. This design resolves common issues associated with traditional single-point locks, such as poor sealing, loose doors, and weak vibration resistance. They are essential components for ensuring secure enclosure sealing and safe equipment operation, making them widely compatible with various sheet-metal cabinet systems.

The main body is manufactured via high-pressure die-casting using high-strength zinc alloy, resulting in a dense, hard, and impact-resistant structure that resists breakage and deformation. The surface undergoes anti-corrosion treatments—such as electrophoresis, powder coating, or galvanizing—providing excellent resistance to rust, corrosion, and aging. These locks are built to withstand harsh industrial environments, including extreme temperature fluctuations, humidity, dust, and equipment vibration, and are suitable for high-frequency opening and closing cycles over a long service life.

Operating on a mechanical linkage principle, turning the handle drives the upper and lower rods to extend and retract simultaneously, locking the door at multiple points (top, bottom, and side). The locking force is evenly distributed, ensuring a tight fit between the door and the cabinet frame. This significantly enhances sealing, dust/water resistance, and vibration stability, effectively preventing issues like door looseness, rattling noises, or dust ingress through gaps caused by operational vibrations. They offer superior anti-theft and anti-tamper capabilities, providing a level of protection far exceeding that of standard single-point locks.

Featuring a standardized and highly versatile design, these locks fit standard industrial cabinet cutout specifications. They are easy to install and remove without complex modifications, making them ideal for automated cabinet assembly lines. Options include keyed-alike, keyed-differently, and specialized lock core configurations—such as triangular, slotted, and standard key locks—to meet specific security requirements. The mechanism operates smoothly without sticking, offering effortless handling that balances practicality with security. Widely used in various sheet metal enclosures—such as high- and low-voltage power distribution cabinets, industrial control cabinets, energy storage cabinets, charging station cabinets, telecommunications base station cabinets, outdoor waterproof electrical boxes, and machinery protection cabinets—these locks support customization of non-standard dimensions, linkage rod lengths, and surface finishes, serving as the mainstream security locking solution for industrial sheet metal enclosures.

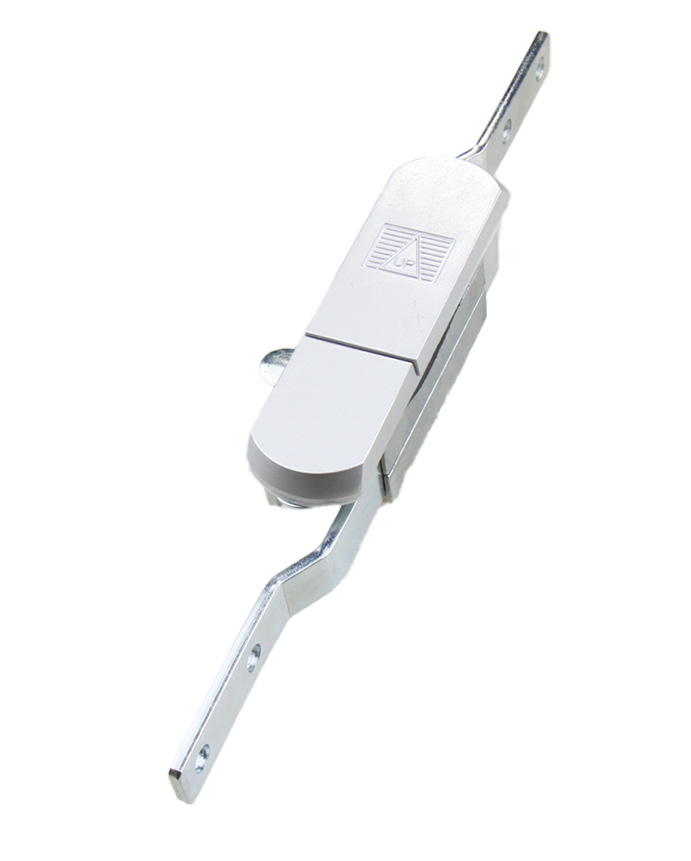

Product Description: Cabinet rod-linkage lock, top-and-bottom rod lock, control cabinet multi-point lock, rod-linkage lock with dust-proof cylinder cover, cabinet linkage-drive lock, equipment cabinet door rod lock;

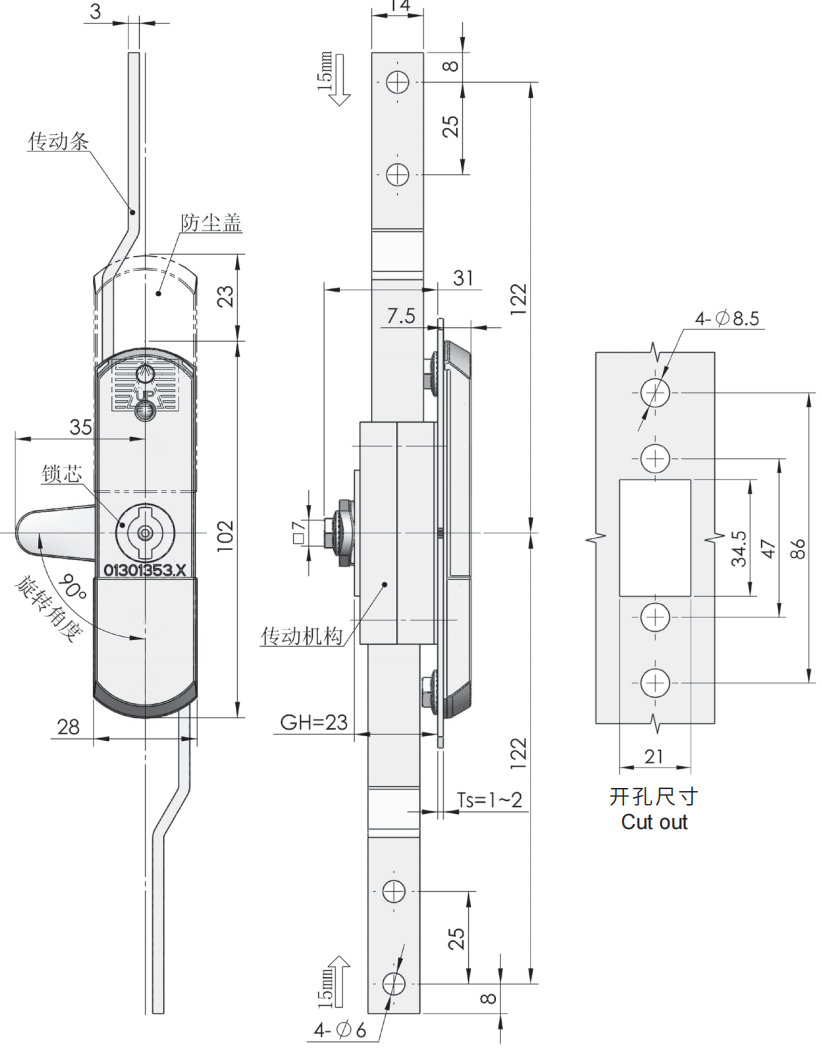

Model: ICL820

Base Materials:

Base, drive housing, lock cylinder, dust cover: Zinc alloy;

Linkage rods, locking tongue, key: Carbon steel;

Performance Parameters: Input torque: ≤9 N·m;

Structural Specifications: 90° rotation to open or lock; supports left or right rotation; IP40 rating;

Surface Treatment:

1. Zinc alloy lock body: Black powder coating, black electrophoresis, chrome plating, matte black spray coating (customizable colors);

2. Linkage rods: Hot-dip galvanizing, electro-galvanizing (rust and corrosion protection);

3. Lock cylinder: Nickel plating (wear-resistant and rust-proof);

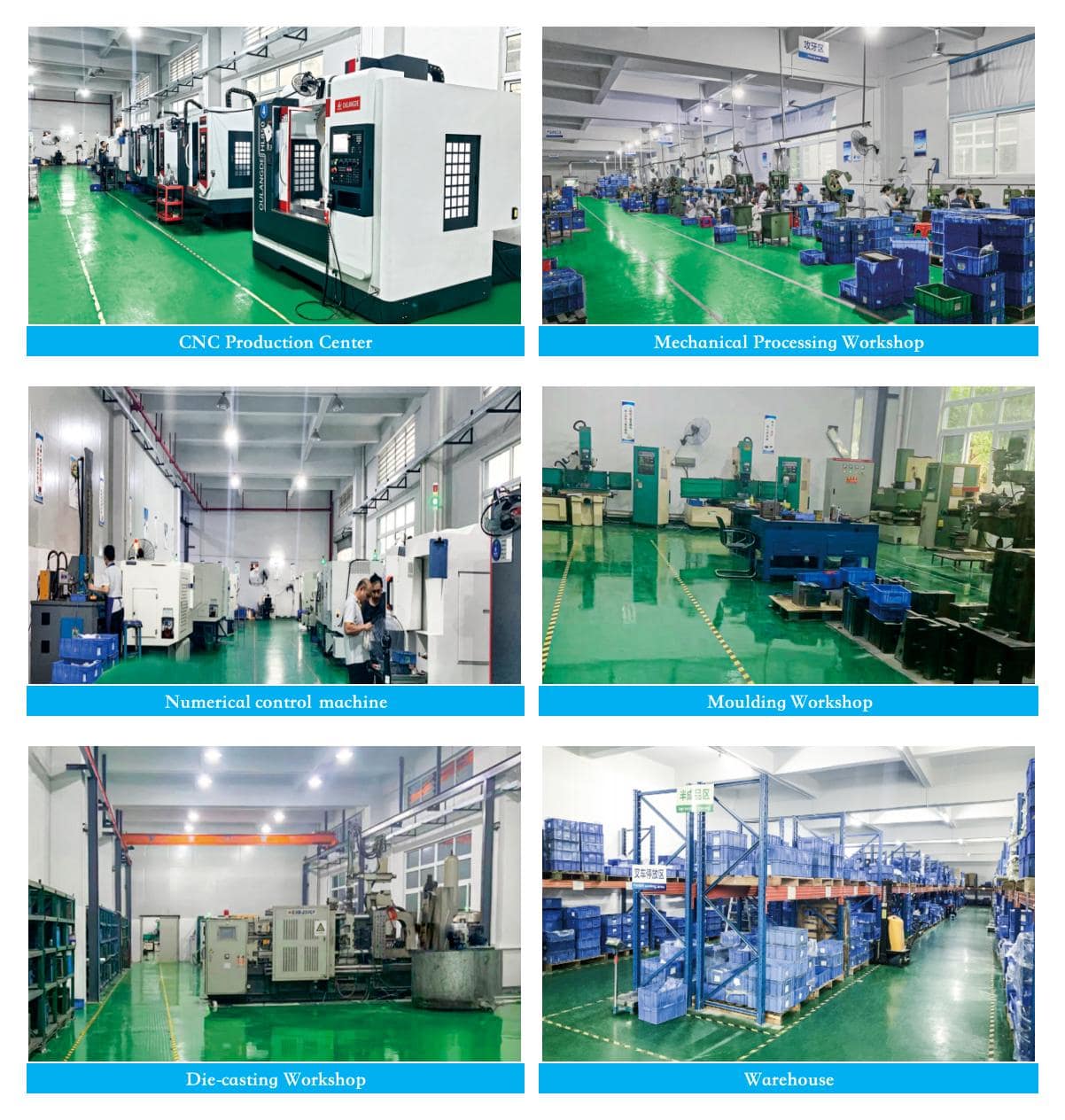

Manufacturing Processes: Die-casting, CNC precision finishing, stamping, bending, drilling and tapping, assembly, torque testing, cycle life testing;

Unit Price: Priced based on quantity

Product: ICL820

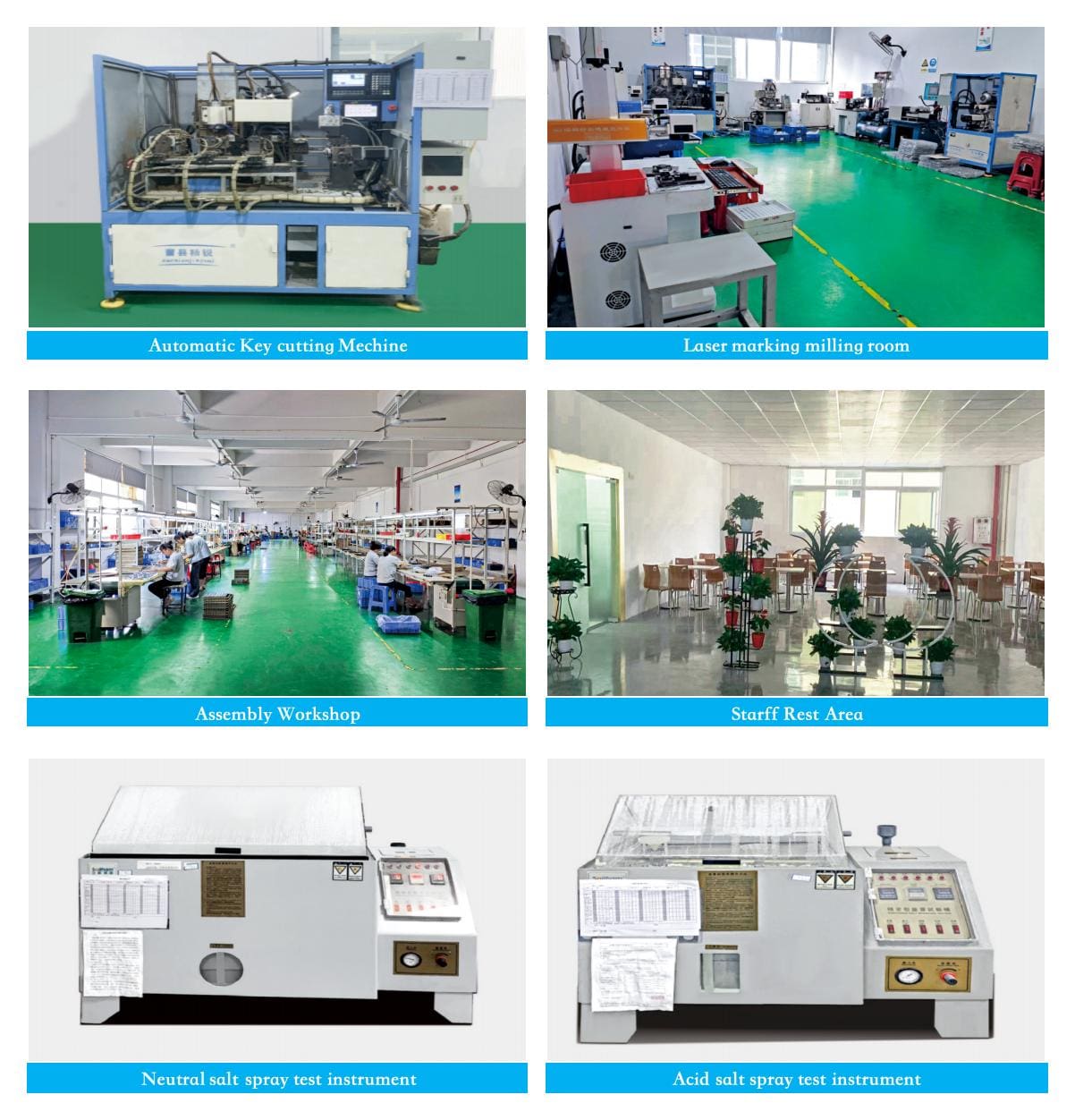

Workshop：

Packaging:

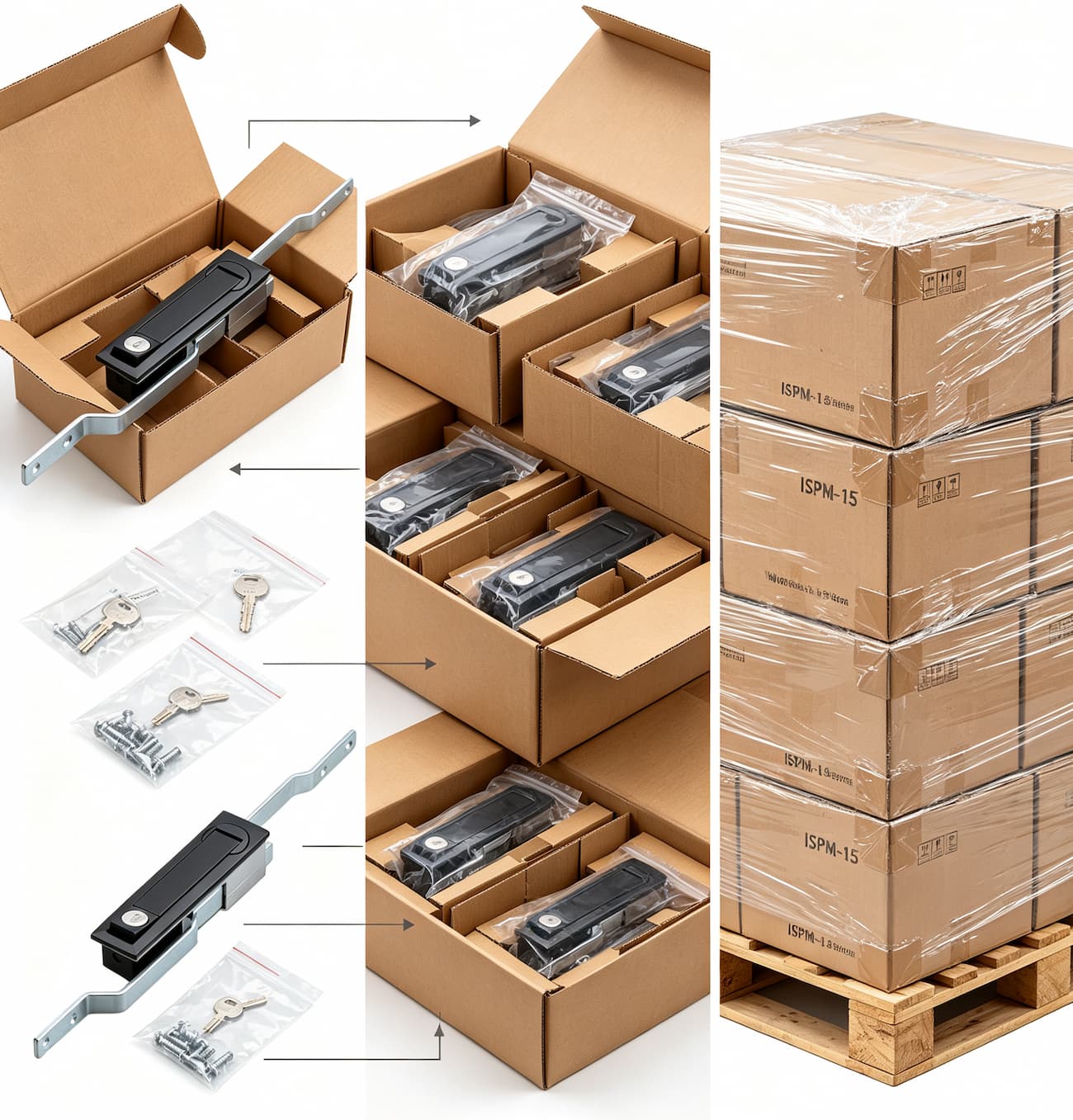

1.  Individual units: PE bag + cardboard box to prevent surface scratches; each set includes a key and a hardware kit (mounting screws).

2.  Small batches: Packed in export-grade corrugated cardboard boxes.

3.  Large batches: Cartons stacked on ISPM-15 heat-treated solid wood pallets, with edge protection and overall securing via stretch wrap.

Logistics: Sea freight, air freight, international express delivery (DHL, FedEx, UPS, TNT), railway transportation (mainly China-Europe Railway Express), road and land transportation (short-distance foreign trade with neighboring countries)
